Compare Tool is an important feature of Krion 6D, designed to enhance collaboration and accuracy in construction projects. It enables project members to thoroughly compare multiple drawings, ensuring consistency and precision in project execution.
To utilize the Compare Tool, users must first upload the drawings as documents within the project in Krion 6D. The tool supports detailed comparison for the following types of files:
· 3D Revit drawings (file extensions: . rvt)
· 2D CAD drawings (file extensions: .dwg)
This capability allows users to analyse and compare two or more project drawings simultaneously, facilitating effective decision-making and project management.
Drawings to be compared should be already available under the same folder in the Documents section of a project.
Top of Form

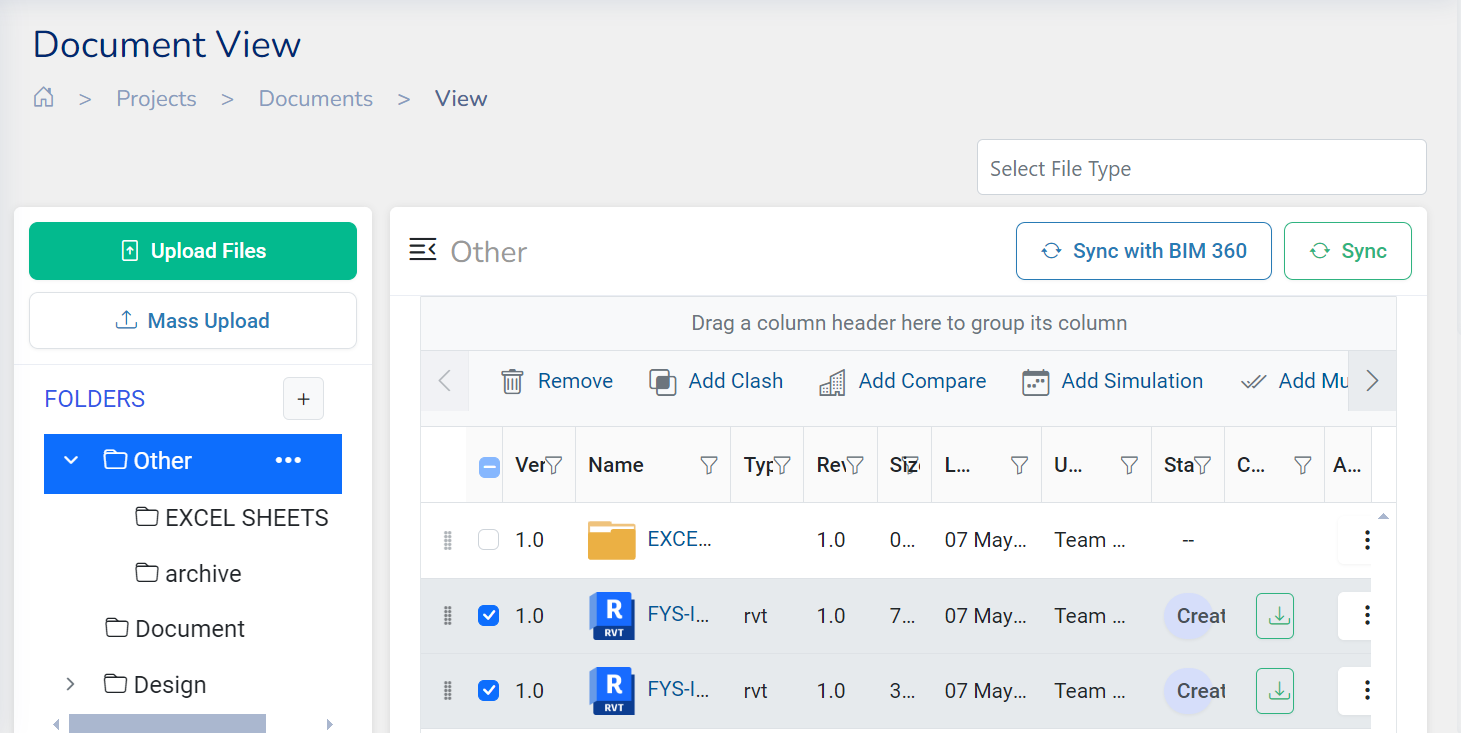

· Select the Drawings for comparison and click on

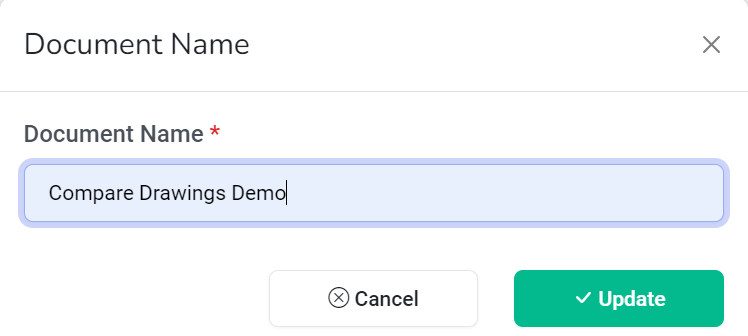

· A dialog will open prompting to enter the Document name and finish by clicking
update
· Click on Update to finish creating a compare file
Navigate to Views under Projects and Click on Compare. The “Compare Drawings Demo” document will be in the compare list. Select the file to view the comparison.

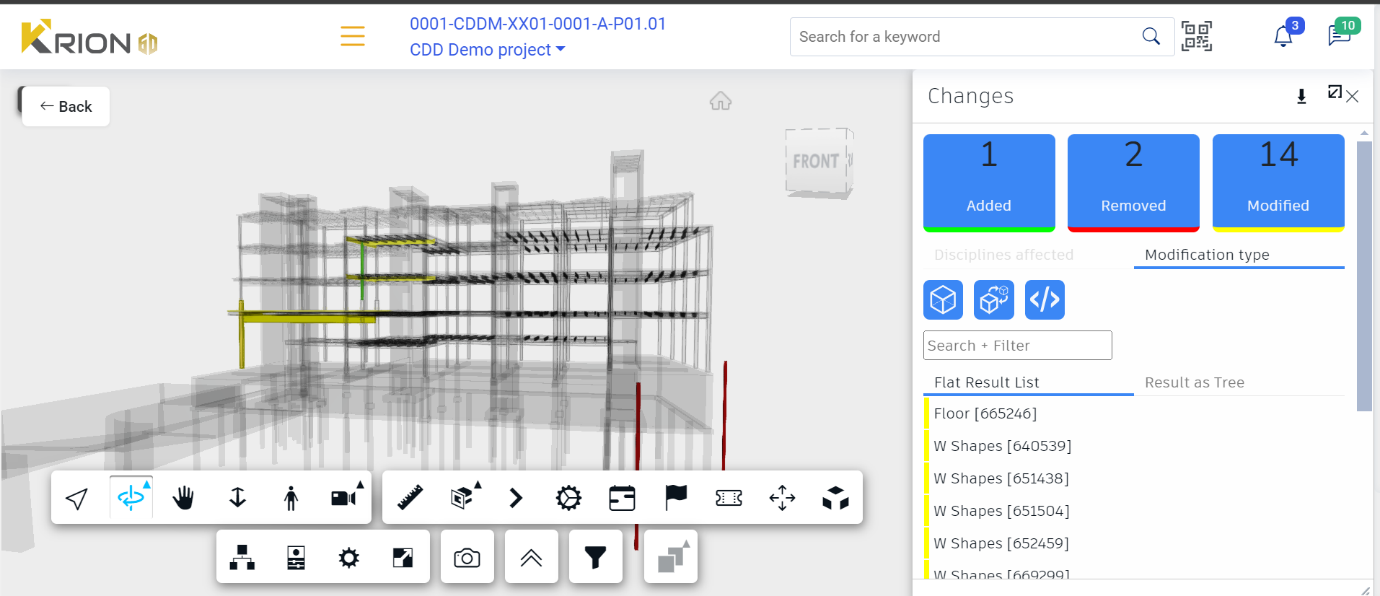

1. Click on the Compare file that you created to check the details. This will open a 3D visualization of the building drawing that was added for the comparison.
When comparing two versions of a 3D model, you can identify object-level information about what has been Added (green), Removed (red), or Modified (yellow) between the two versions. The color-coding is displayed on the model, and against the elements in the Changes and Information dialogs. As you select items from the change list, their position on the model is highlighted.
Note:
The Change List can also be downloaded as an Excel file by clicking on

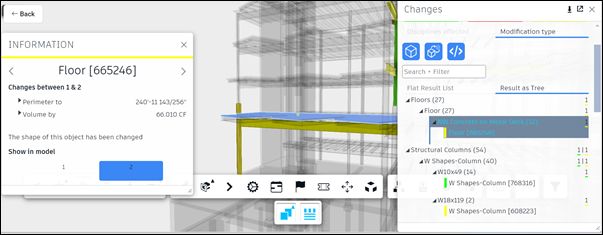

Change results are displayed in 2 different ways in the
1. Flat result List
When we click on an item under the flat result list it shows the details of the items on the model view pane
2. Result as Trees
This list shows items in stepwise (Tree) view
Note: Toggle the following icons to view/hide changes
: Hide Shape changes
: Hide Transformations
: Hide Property changes
