A multi-model view in Krion 6D application is a comprehensive visual representation that integrates 2D multiple drawings and 3D models into a single view. Federating a multi model view integrates or combines multiple individual discipline-specific models into a single, cohesive model. The federated model encompasses all the different aspects of the building project, such as architectural, structural, mechanical, electrical, and plumbing systems etc.,.

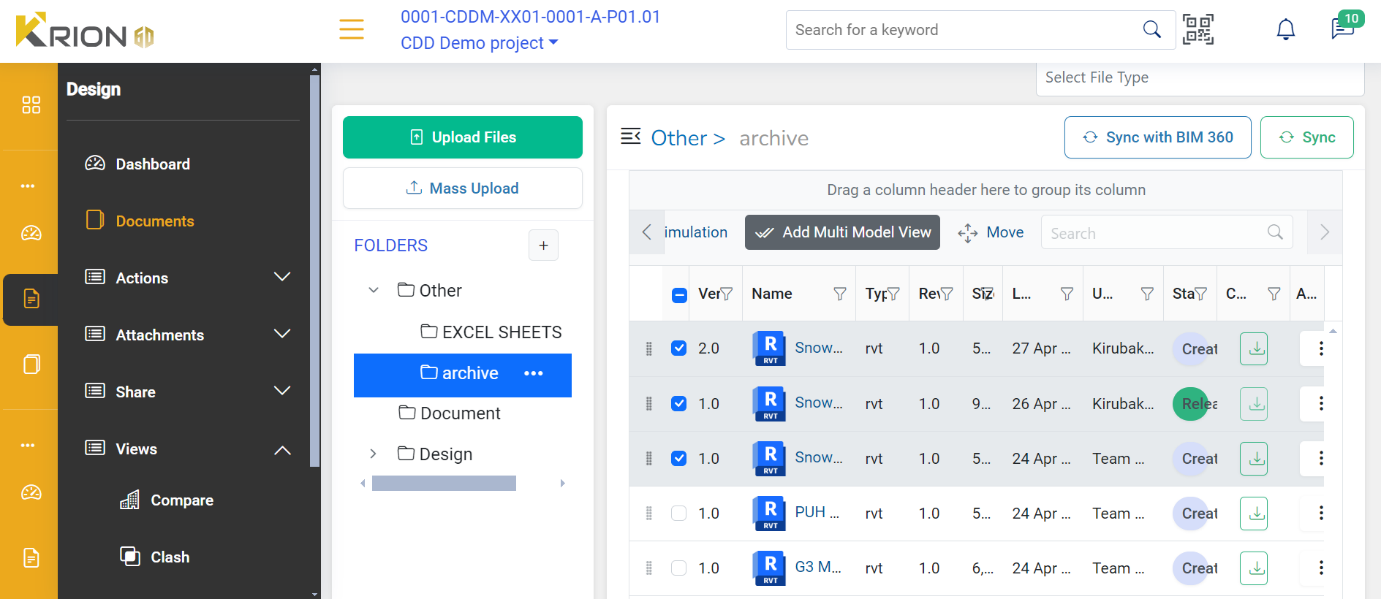

The required drawings for federating the model should be already available under the same folder in the Documents section of a project. Select two or more documents to federate and click on
· rvt + .rvt
· .dwf + .dwf
· .rvt + .dwf + .dwf or any other combinations as required or applicable.

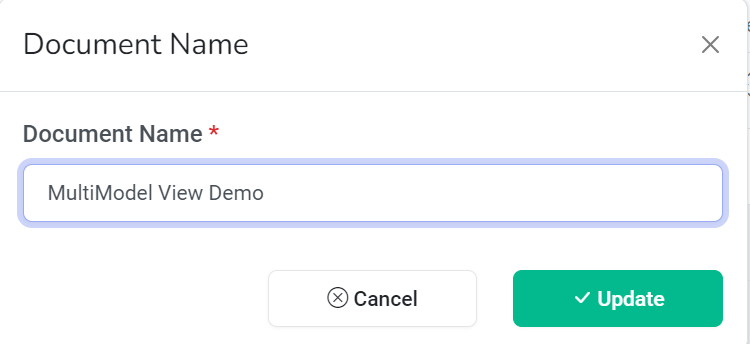

Enter a Document name for the Multi-Model View and click update

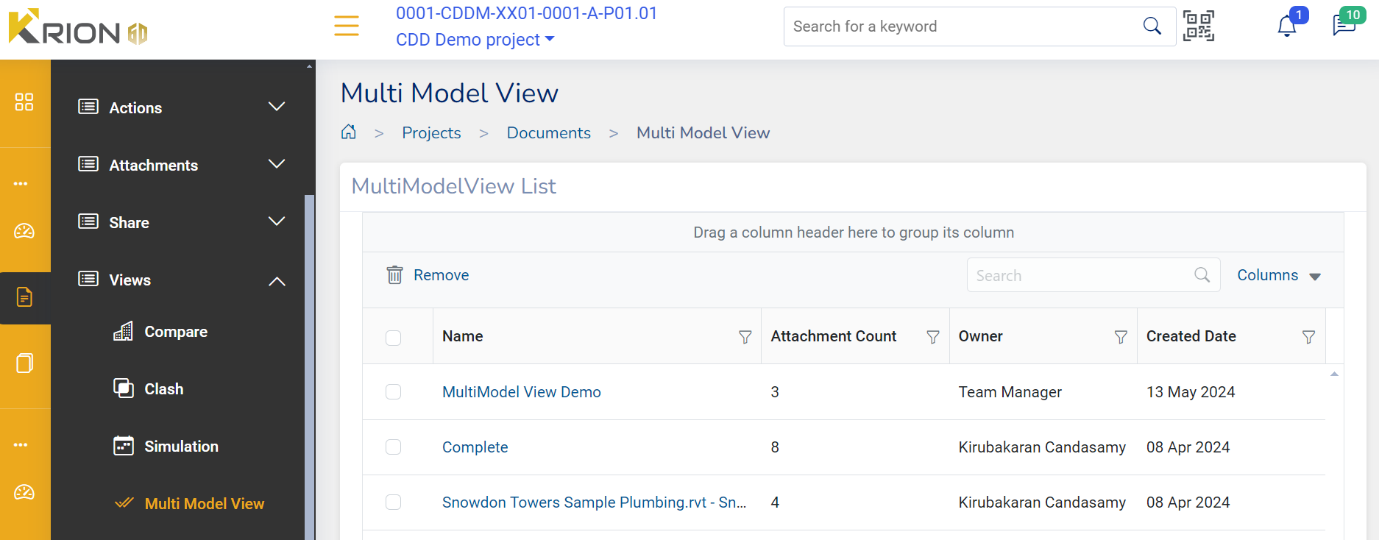

Navigate to Views under Projects and Click on Multi Model View . The “Multi Model Demo” document will be in the Multi-model View List. Select the file to view the comparison.
The multi model view will open in the viewer. Use the 3D interactive tools to analyze the model.
