The Krion 6D application lets you add a new Project using an available template or by creating a new template.

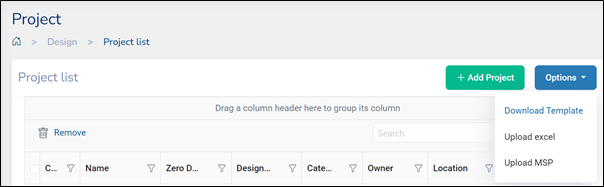

From the navigation pane click on Projects under Design. A list of existing projects will show up.
1. To create a new project, click on
2. Other options include to create a project includes clicking on Download Template which will download an Excel file containing a Sample Project template that can be filled and uploaded back again using Upload Excel. A Microsoft Project file can also be uploaded to add a new project through Upload MSP.

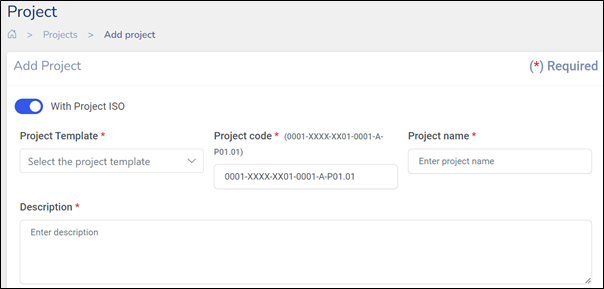

3. Add project will prompt with the following form:
Note: A project can be added with Project ISO by toggling the button on.
4. Complete the required fields:
· Project Template: This field lists a choice of basic templates that you can choose to create a project.
· Project Code: To be entered in the ISO 19650 format. The Project code to be entered is structured as follows:
(0001-XXXX-XX01-0001-A-P01.01), which breaks down into these components:
o0001: A unique identifier for the project being created
oXXXX: The code representing the organization.
o XX01: Alpha Numeric Code for the current phase of the project.
o 0001: The code for the department.
o A: The department revision identifier Viz., A - Architectural, C-Civil, S-Structural, M-Mechanical, P-Plumbing, E-Environmental etc.,
o P01: Revision Number
o 01: A suffix indicating that the issue is currently a work in progress.
· Project Name: Specify the name of the project
· Give a brief description of the project

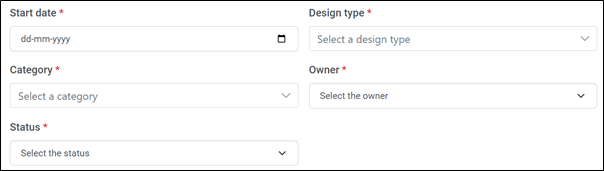

·Specify the start date of the project
·Select a Design Type from the drop-down menu
· Select the category of the building from the listed options
· Select the Owner of the project
· Select the Status of the project (Create, Close, InProgress)

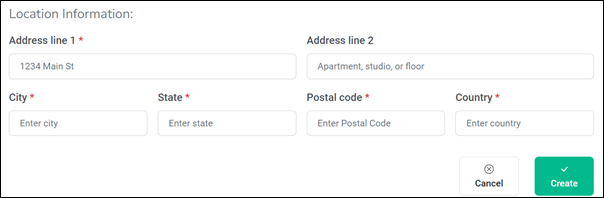

·Enter the location information of the project as mentioned
5. Click onto finish creating a Project.
Note: When a new project is created by default 3 folders are available to store files. Design, Document and Other.
Once a new project is created, the tool will automatically guide the user through additional setup steps when the project is opened. These steps include adding users, creating user groups, and setting up workflows.
