Uploading Files in the Project

All files related to a project can be uploaded under the documents tab in projects in the Krion6D application

The Krion 6D application lets you upload files from Revit, Autocad, NavisWorks, and all the other important file formats. The file formats supported by Krion 6D are xls, xlsx, csv, pdf, png, doc, docx, rvt, dwg, dwf, nwc, nwf, nwd, bcf, ifc, pptx, ppt, las, spx, xml, dxf, zip, rar, ipt, ipj, iam, jpg, jpeg, txt, svf, cad.

Note: The maximum file size of a document that can be uploaded is 1GB.

Note: This can used to hide the left pane showing the list of all the folders.

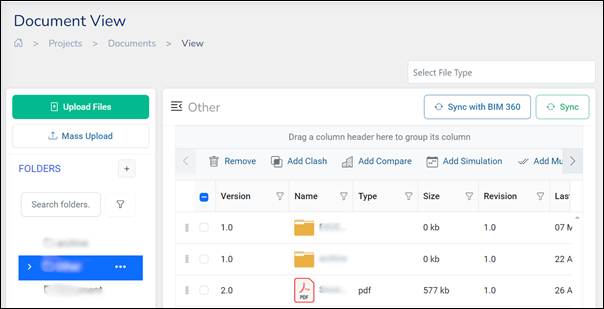

Add/Move/Remove Folders

·To Upload a file or Add a new file click on

This option lets you upload one document at a time.

· To upload a entire folder containing multiple documents, Click on

·         To create a New Folder, click on , and enter a folder Name and click Save

· Can be used to remove a file from the document list.

· Option lets you change the order of the files/folders list by clicking and dragging them to a new location.

· Search bar helps in searching a Document File/Folder from the list.

· Sync with BIM360 helps in syncing the drawings with BIM360 application

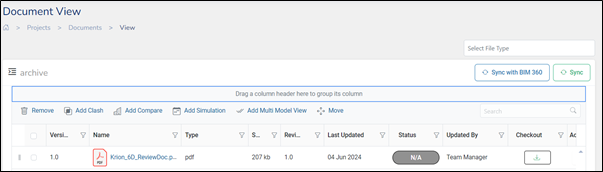

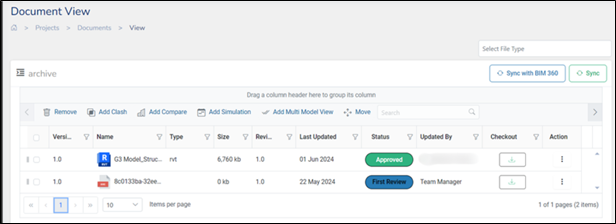

Understanding the Document View



·         Version: Displays the document version.

·         Name: Shows the document name.

·         Type: Displays the file type.

·         Size: Shows the document size.

·         Revision: Displays the revision number of the document.

·         Date: Indicates the date of the last update of the document.

·         Updated By: Displays the user who last updated the document.

·         Status: Shows the current status of the document (e.g., Create, In Progress, Review, Release).

· Check Out: Provides the option to download the document.

· Action: Clicking on the options under this column enables the following actions:

o   Select Version: Allows selection of a particular version of the document.

o   Delete: Enables the user to delete the document.

o   Markup List: Displays the list of markups annotated on the drawing/3D model

Note: Document list can be grouped by dragging and dropping columns

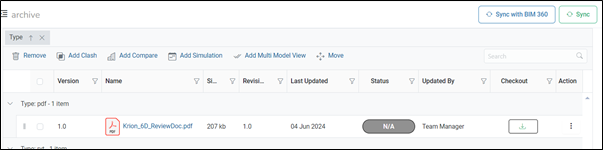

Here the list has been regrouped by the Type Column

Assigning Document to Workflow

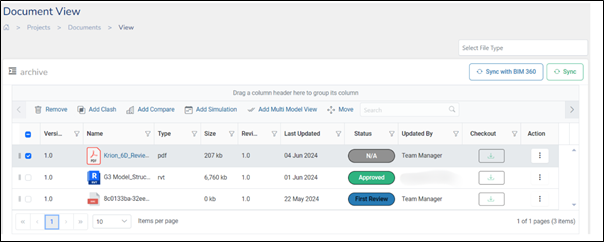

Once a new document is uploaded the Status of the document can be to set to the document workflow.

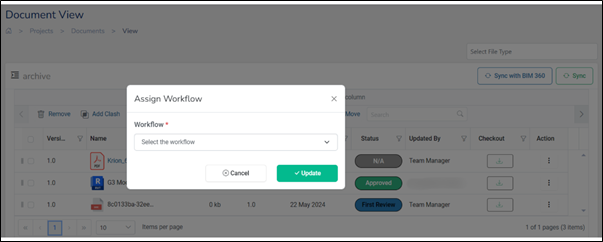

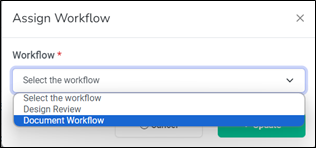

In the Status Column click on N/A and connect to a workflow by choosing a workflow listed from the drop-down menu.
\

Working with the document files

Krion6D application provides various options on work on the construction project drawings, various options to work with the documents like comparing them, identifying clashes, simulation, and multi-model view.

To detect any clash in drawings select 2 documents (.xml+.nwd) and click on . Clash visualization of any design elements between the two documents gets highlighted.

· To compare to designs select to two documents (.rvt+.rvt) or (.dwg+.dwg) and click on

·To check the simulation of drawings select two documents (.xml+.nwd) and click on . Simulation gives a view of the drawing with a timeline of the project.  You can drag the timeline cursor to see various aspects of the project at the desired time.

·To federate drawings in a muiltimodel view , select two or more documents (.rvt+.rvt) or (.dwf + .dwf) or (.rvt + .dwf + .dwf) etc   and click on
