The simulation tool in Krion 6d is a valuable tool which enables visualization of the projects drawings along with its timeline of completion.
The simulation tool in Krion 6d, provides a dynamic visualization of the project construction process over time. This simulation tool integrates 3D models with schedules and timelines to create a simulation that shows how a project will evolve from start to finish.
Users must first upload the drawings as documents within the project in Krion 6D to utilize the Simulation Tool. To view the simulation of drawings, the following two documents are required
· Navisworks Document (file extension: .nwd)
· XML file corresponding to the respective Navisworks document (file extension: . xml)

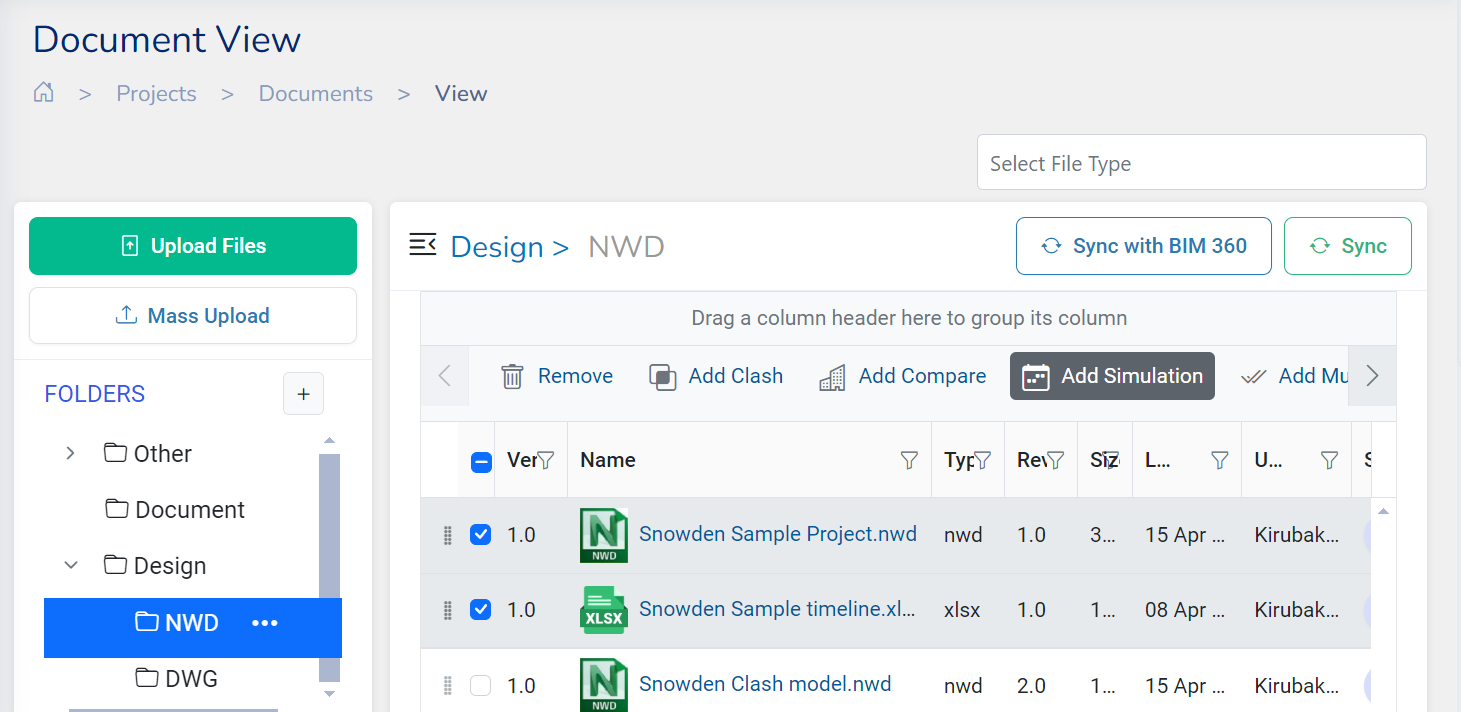

The .xml file and the .nwd file of the project should be already available under the same folder in the Documents section of a project. Select the required file and click on

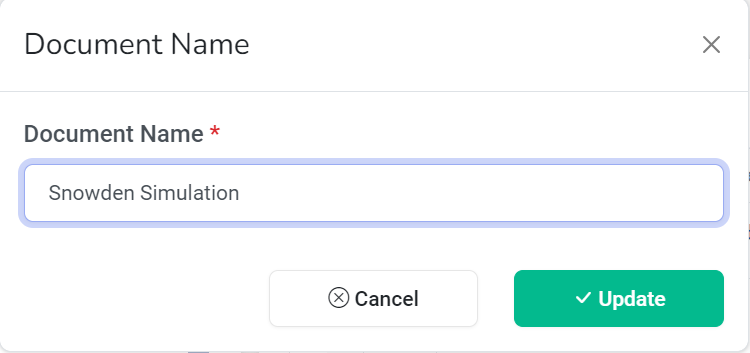

Enter a Document name for the simulation will in the dialog and click Update

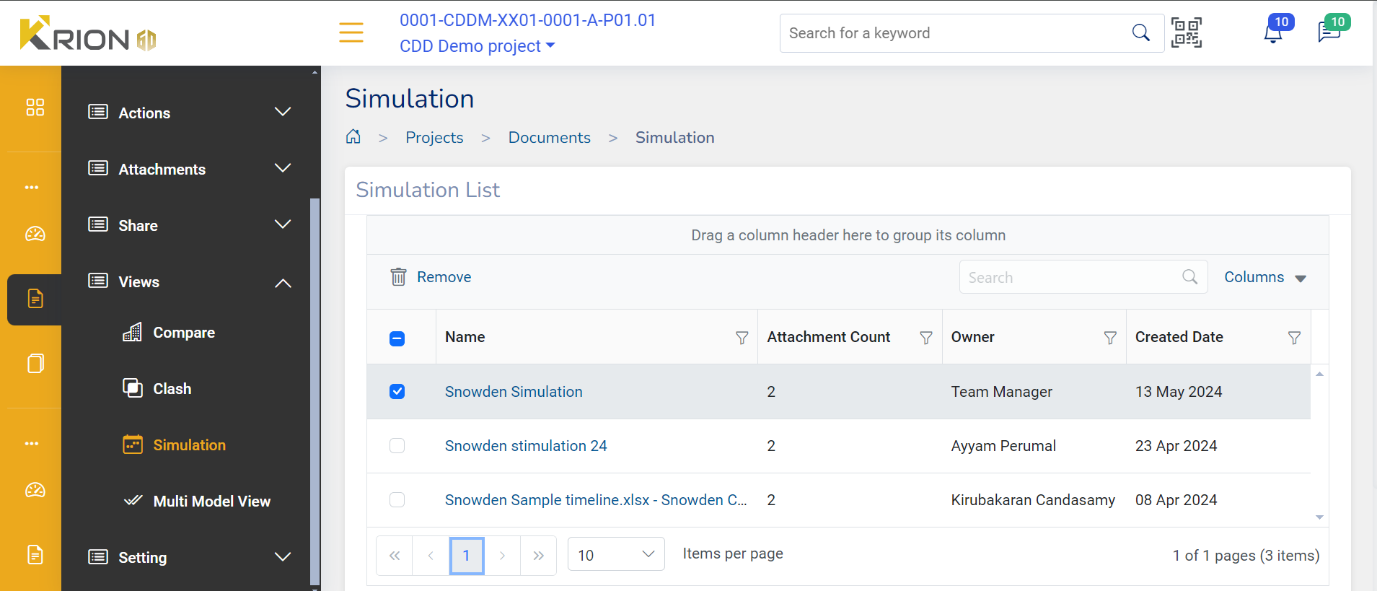

Navigate to Views under Projects and Click on Simulation. The “Snowden Simulation” document will be listed under the Simulation list. Select the file to view the Simulation.

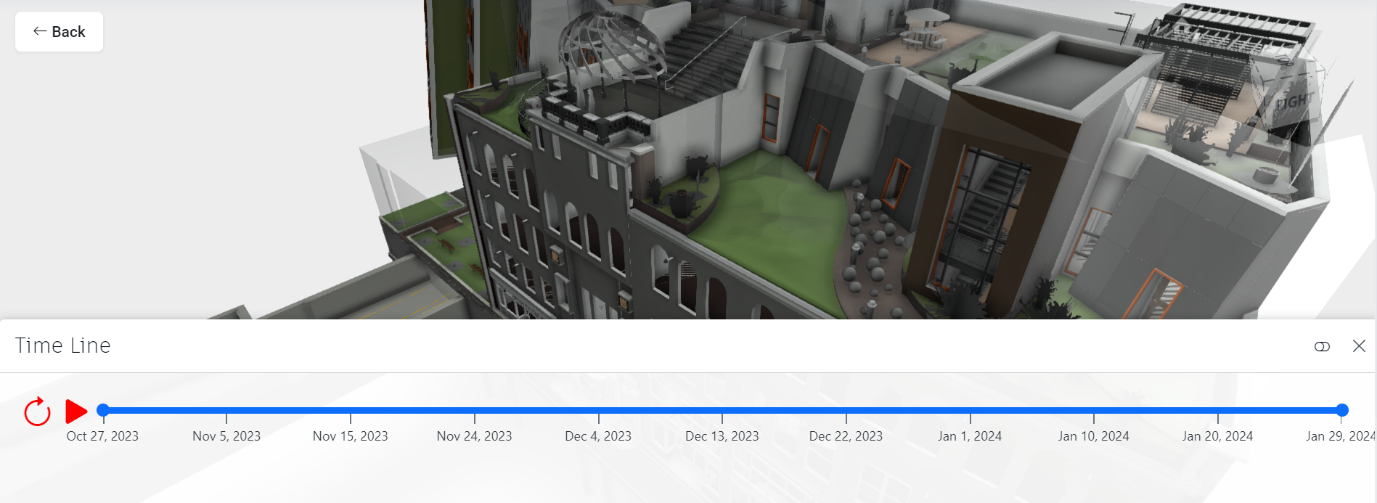

The simulation view along with the timeline will open
Note:
· Click on to play and view the simulation of the drawing
· Click on button will toggle the timeline view to a more details about the project

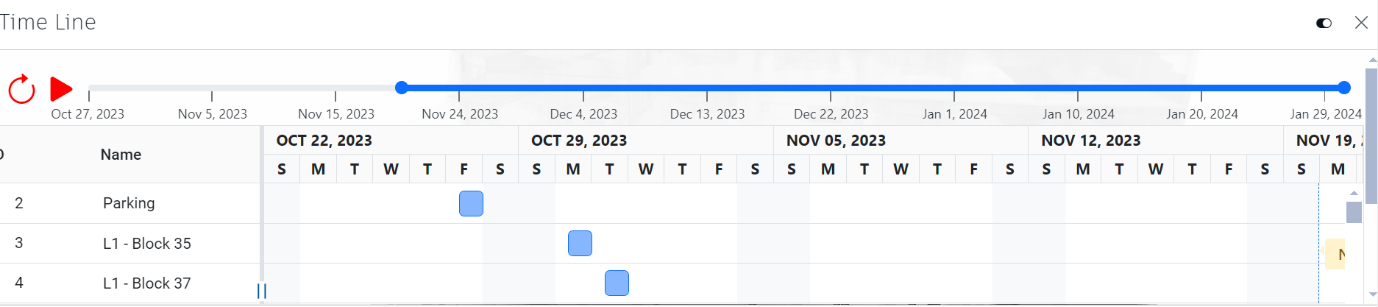

· The simulation can be paused and the details of the activity can be read from the Gantt chart below along with the item
· The scroll bar can be adjusted to view the activity planned for a particular time frame
· Timeline view can be also be closed by clicking on and the 3D model can be viewed without it.
