Clash tool in Krion 6D helps in analyzing intersections between models. When the supported documents are added and then viewed in the 3D viewing space, they are automatically analyzed and a clash data report is shown in a dialog. Each item in the Clash Data can be individually viewed on the 3D model and analysed.
To Visualise Clash of drawings following two documents are required
· Navisworks Document (file extension: .nwd)
· XML file corresponding to the respective Navisworks document (file extension: . xml)

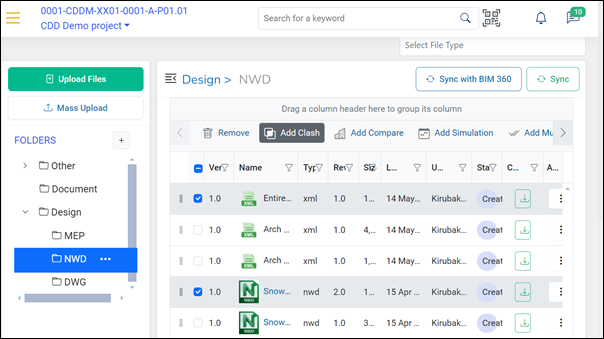

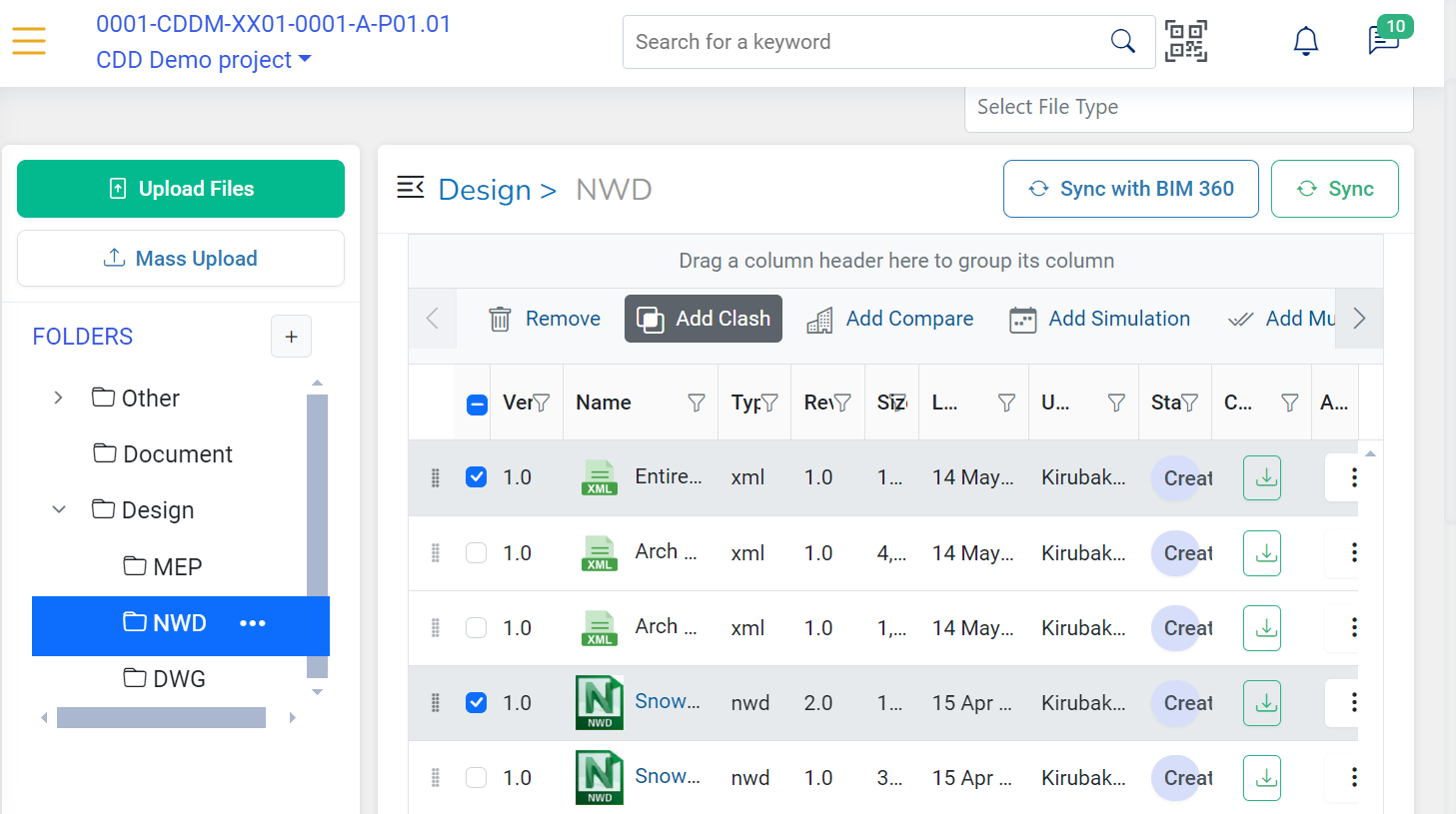

The .xml file and the .nwd file of the project should be already available under the same folder in the Documents section of a project. Select the required files and click on

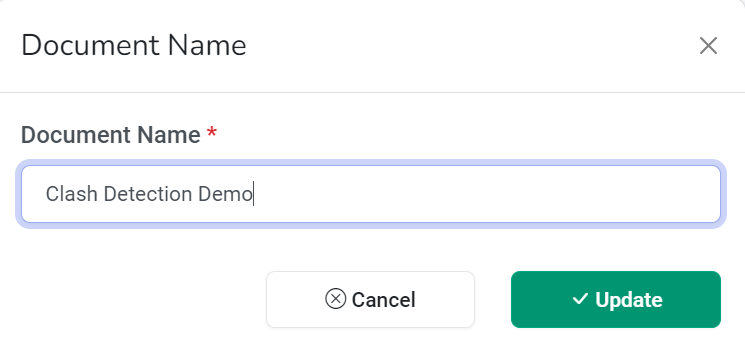

Enter a Document name for the Clash View and click update

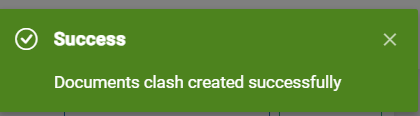

Once the Clash Document is created successfully a message will be displayed

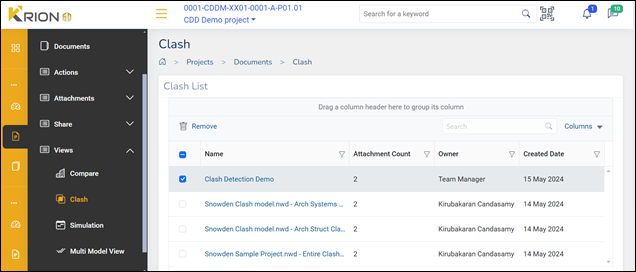

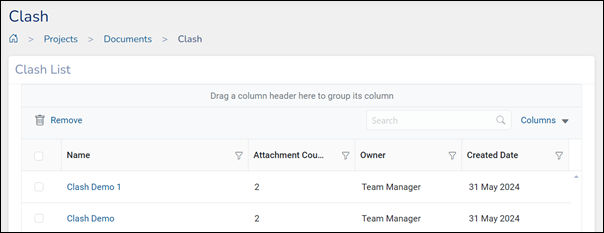

Navigate to Views under Projects and Click on . The Clash List shows the list of documents created for Clash view.
Clash List displays the following data:
· Name: Displays the document file created for viewing the clash
· Attachment Count: Displays the number of documents added for the class check
· Owner: Displays the User who created the clash check file
· Created Date: Shows the date on which the clash document file was created
Note:
o Clash documents can be removed by selecting and clicking on

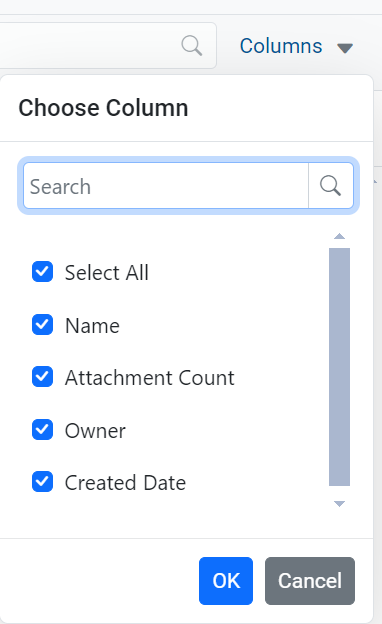

o Clash list columns can be customized by selecting the Columns drop down
To view a Clash document select the document from the Clash List.
Here “Clash Detection Demo” document is Selected

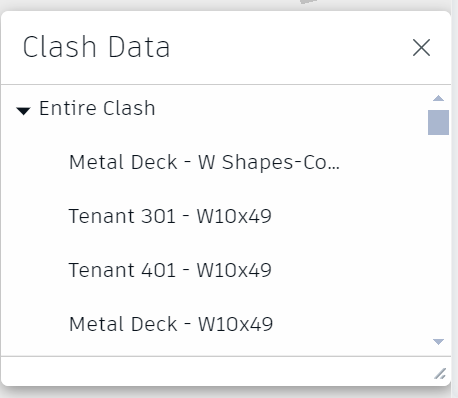

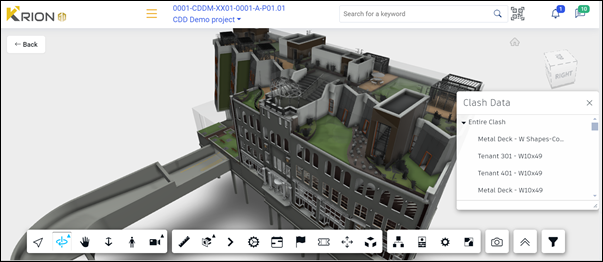

The tool will detect the clashes and show a Clash Data Report in a dialog box as shown below along with the 3D viewer

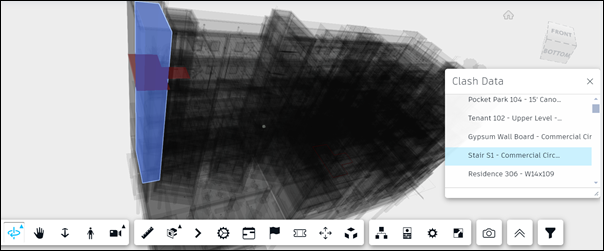

The Clash elements are highlighted below:

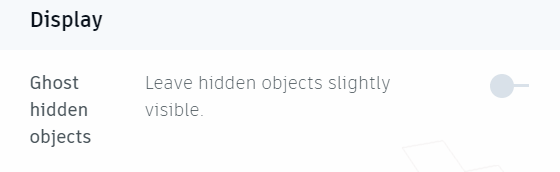

Note: To view only the Clash elements in the display Settings toggle off Ghost Hidden Objects
Clash data report lists all the items in which clashes have been detected.

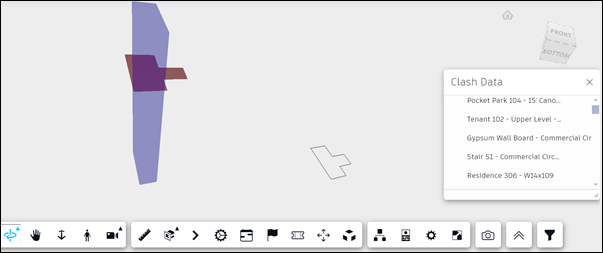

You can click on each item and view its location of the clash on the 3D model Viewer.
