Checklists are created to track a construction project's quality, safety, and commissioning progress. Checklists can be worked on the field to keep a project on track. In the Krion 6D application Checklist tool is available under the Attachments in
A checklist will have a
· Code: Unique ID given to a checklist
· Title: The name of the Checklist
· Created by: User who created the checklist
Note: The items to be displayed in the Checklist can also be customized by selecting the drop-down menu.
A checklist can be created by uploading it manually as an Excel sheet by entering all the details as per the sample Template. Clicking on allows you to download a sample checklist, and upload the Excel file once the items have been manually entered
Another way to create a checklist is by clicking the Add button and filling up the details directly on the Krion6D tool.

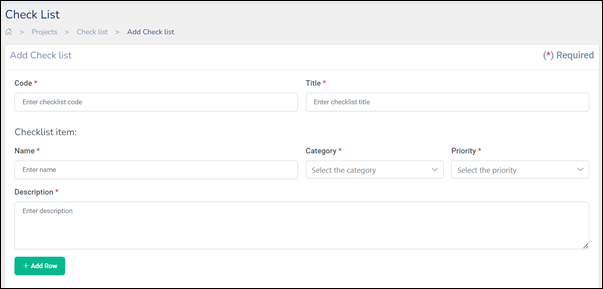

To create a new Checklist, click on and fill the details in the CheckList dialog
· Code: Enter Checklist Code
· Title: Enter the title name for the checklist
· Checklist Items:
o Name: Enter the name of a Checklist Item
o Category: Select the category to which the checklist belongs or create a new category item by typing in.
o Priority: Priority of High, Medium, or Low can be set of the Item
o Description: Describe the checklist item
· Finally, click to create a Checklist successfully
Note: To add more checklist items in the same Checklist, click Add row.

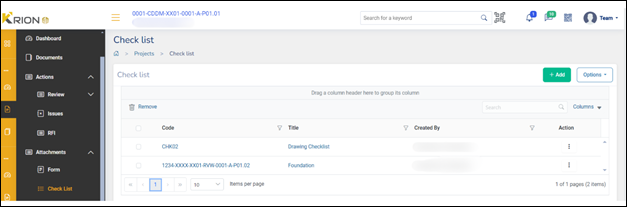

Once a Checklist is created it can be viewed in the list. Various actions can be performed on a Checklist by clicking on under the Actions column.
· Edit: Clicking on edit action lets you edit a Checklist
· Add Task: + Add Tasks opens to the Add review tool where a related task can be created
· Add Issue: +Add Issue opens to the Add an Issue tool where an Issue can be created
· Delete: Delete a Checklist
